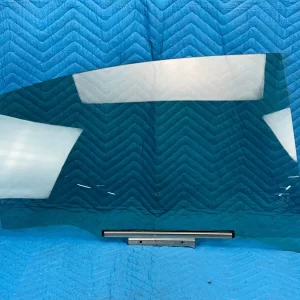

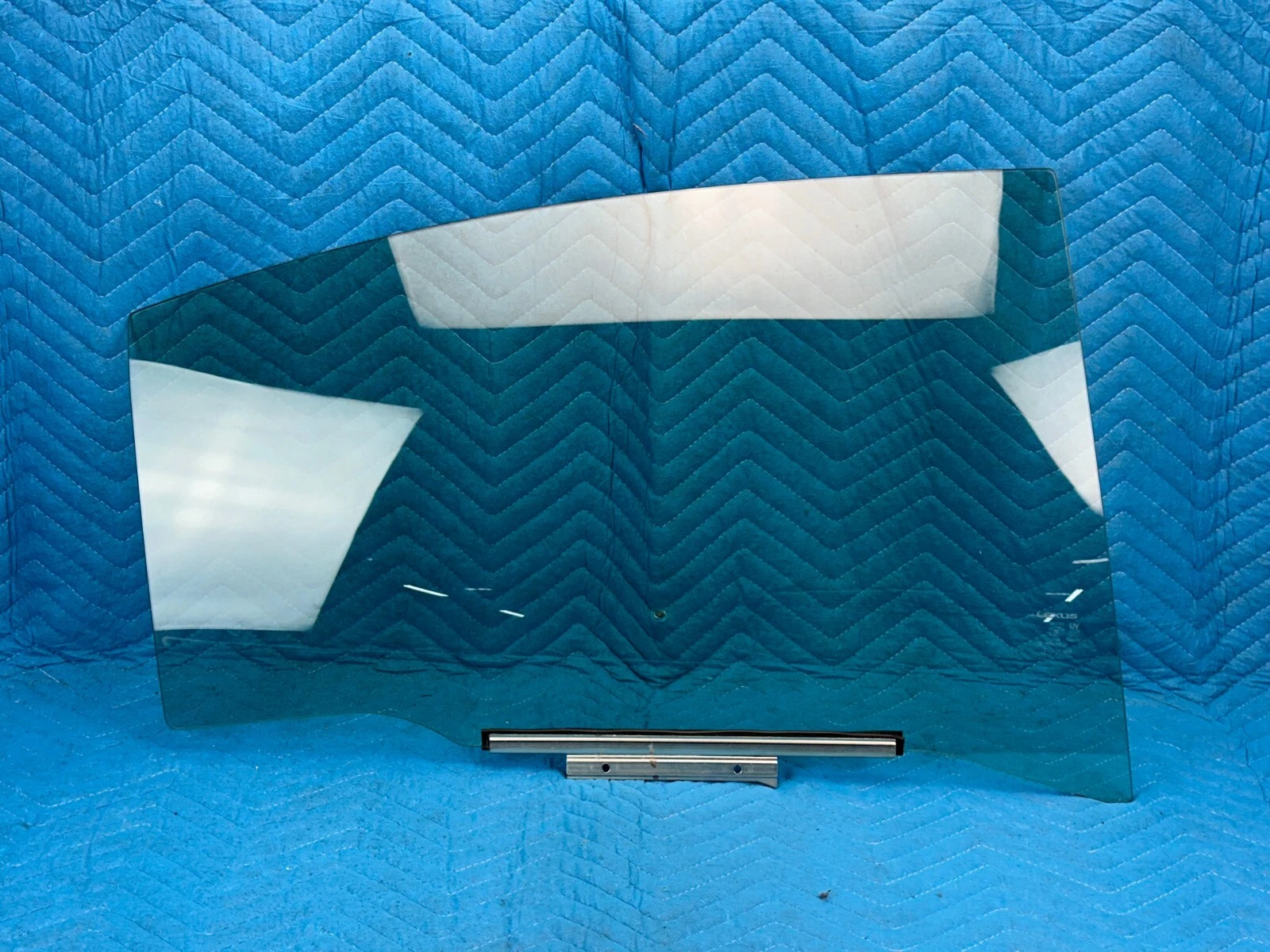

2013-2018 Lexus ES350 ES300h Rear Door Window Glass Passenger Side OEM

Product Details

The 2013-2018 Lexus ES350 ES300h Rear Door Glass is an OEM-style replacement for the main movable window glass fitted to the right-hand rear passenger door of compatible Lexus ES350 and ES300h sedans. It is suitable for replacing glass that has been broken, scratched, damaged during a collision, removed during vehicle rebuilding, or otherwise requires replacement.

This product is intended specifically for the rear passenger-side door, commonly described as the rear right-hand or RH door glass. It should not be confused with the smaller fixed quarter glass located toward the rear of the same door.

A commonly referenced Lexus OEM number for the main movable passenger-side rear glass is 68113-33181, which supersedes earlier reference 68113-33180 on applicable vehicles. Genuine Lexus parts references describe 68113-33181 as the right-hand rear door glass sub-assembly.

Because production location and vehicle specifications can affect fitment, the original glass markings, VIN, model year, and OEM number should be checked before ordering the 2013-2018 Lexus ES350 ES300h Rear Door Glass.

Lexus ES350 and ES300h Compatibility

The 2013-2018 Lexus ES350 ES300h Rear Door Glass is associated with the sixth-generation Lexus ES platform and is commonly cross-referenced for:

• 2013 Lexus ES350
• 2014 Lexus ES350
• 2015 Lexus ES350
• 2016 Lexus ES350
• 2017 Lexus ES350
• 2018 Lexus ES350
• 2013 Lexus ES300h
• 2014 Lexus ES300h
• 2015 Lexus ES300h
• 2016 Lexus ES300h
• 2017 Lexus ES300h
• 2018 Lexus ES300h

OEM interchange references identify 68113-33181 as a right-rear movable glass used across 2013–2018 ES300h and ES350 applications, although VIN verification remains recommended because manufacturing location and production changes can affect individual vehicles.

Passenger-Side Rear Door Position

This product is for the passenger side, which is the right-hand side of left-hand-drive vehicles.

Lexus describes the component as:

Glass Sub-Assembly, Rear Door, RH

The 2013-2018 Lexus ES350 ES300h Rear Door Glass is the main glass panel that moves vertically when the rear passenger window switch is operated.

This distinction is important because the rear door contains two separate glass components:

Main Movable Rear Door Glass

This is the large window that raises and lowers using the power window regulator.

A common OEM reference is:

68113-33181

Earlier applicable reference:

68113-33180

Fixed Rear Door Quarter Glass

The smaller stationary glass toward the rear edge of the door is a different part.

Common right-hand quarter-glass references include:

• 68123-33091 – applicable standard fixed quarter glass
• 68123-33101 – applicable vehicles equipped with the rear sunshade configuration

Lexus catalog information confirms that these quarter-glass components are separate from the main movable rear door glass.

Customers should therefore make sure they require the main movable 2013-2018 Lexus ES350 ES300h Rear Door Glass before purchasing.

OEM Part Number 68113-33181

One of the most useful numbers for identifying the passenger rear movable glass is 68113-33181.

OEM parts references describe this component as:

• Rear Door Glass
• Right Hand
• Passenger Side
• Movable Glass
• Glass Sub-Assembly

The earlier 68113-33180 reference was replaced by 68113-33181 for applicable vehicles.

When purchasing a used 2013-2018 Lexus ES350 ES300h Rear Door Glass, check the manufacturer’s markings printed or etched on the original glass and compare them with the replacement panel.

Part numbers can be particularly useful when the vehicle has been imported or when the exact production specification is uncertain.

OEM Glass for Factory-Style Replacement

An OEM rear window is useful for customers who want to maintain a factory-style fit and appearance.

When properly matched, the 2013-2018 Lexus ES350 ES300h Rear Door Glass is designed to work with the original:

• Rear door frame
• Window regulator
• Window channels
• Weatherstrips
• Door seals
• Window guides
• Power window mechanism

Using correctly matched glass helps reduce problems with movement, sealing, alignment, and wind noise.

If the supplied item is genuine used OEM Lexus glass, the manufacturer’s markings should normally remain visible on the panel.

The condition and originality of the specific product should nevertheless be confirmed before sale.

Tempered Rear Door Safety Glass

Rear movable door windows on these ES applications are generally identified as tempered safety glass, unlike certain front-door configurations that can use laminated acoustic glass.

A current fitment reference for the 2013–2018 ES rear door glass identifies the rear movable panel as tempered glass.

The exact markings on the supplied 2013-2018 Lexus ES350 ES300h Rear Door Glass should be checked because glass specifications, tint, manufacturer, and market certification can differ.

Avoid advertising an exact tint percentage, UV rating, acoustic specification, or glass manufacturer unless these have been verified directly from the product.

Factory Tint and Glass Appearance

OEM automotive glass can have a subtle factory tint.

When replacing only one door window, a genuine OEM panel can help maintain a more consistent appearance with the remaining vehicle glass.

However, tint appearance can vary depending on:

• Vehicle market
• Manufacturing source
• Existing window film
• Previous replacement glass
• Glass production specification

For used OEM glass, photographs should be reviewed to compare the tint and etched markings with the existing vehicle.

If aftermarket tint film has been applied, that film may need to be installed separately after replacement.

Window Regulator Not Included

The 2013-2018 Lexus ES350 ES300h Rear Door Glass is the glass component and should not automatically be assumed to include the complete power-window mechanism.

Components that may be separate include:

• Window regulator
• Window motor
• Rear door wiring
• Window switch
• Weatherstripping
• Glass run
• Quarter glass
• Door frame components
• Mounting hardware
• Interior door trim

If the existing window will not raise or lower but the glass itself is intact, the problem may involve the regulator, motor, switch, wiring, or another mechanical component rather than the glass.

Proper diagnosis is recommended before ordering.

Installation Considerations

Professional installation of the 2013-2018 Lexus ES350 ES300h Rear Door Glass is recommended.

Replacement can require removal of the interior rear door panel and access to the window regulator.

The technician may need to:

1. Remove the door trim panel.
2. Disconnect relevant electrical connectors.
3. Move the regulator into an accessible position.
4. Release the existing glass from its mounting points.
5. Remove remaining broken glass where necessary.
6. Position the replacement glass into the window channels.
7. Secure the glass to the regulator.
8. Test window movement.
9. Inspect sealing and alignment.
10. Reinstall the door trim.

The smaller rear quarter glass or associated channels may also need to be loosened during certain replacement procedures.

Power Window Initialization

After door-glass work or disconnection of vehicle power, the power window system may require initialization or relearning.

The exact procedure depends on the vehicle and repair performed.

The replacement 2013-2018 Lexus ES350 ES300h Rear Door Glass should move smoothly through the complete window channel without binding before the door panel is fully reassembled.

If the window stops, reverses, moves slowly, or does not close evenly, the regulator, guides, alignment, and initialization should be checked.

Used OEM Glass Inspection

For a used OEM glass panel, condition should be clearly established.

Inspect for:

• Chips
• Deep scratches
• Edge damage
• Cracks
• Previous tint-film residue
• Mounting-point damage
• Etched OEM markings
• Excessive surface wear

Minor marks can occur on used automotive glass, but cracks and edge damage can affect usability.

The exact condition of the 2013-2018 Lexus ES350 ES300h Rear Door Glass should be documented with photographs before shipping.

Suitable Buyers

This product can be suitable for:

Automotive Glass Shops

For passenger-side rear window replacement.

Collision Repair Centers

For vehicles damaged during an accident or break-in.

Lexus Repair Specialists

For maintaining and restoring ES350 and ES300h models.

Vehicle Rebuilders

For restoring complete door assemblies.

Auto Parts Resellers

For stocking used or genuine OEM Lexus glass.

Wholesale and Export Buyers

The 2013-2018 Lexus ES350 ES300h Rear Door Glass can be supplied commercially subject to actual availability.

Packaging and Shipping

Automotive glass requires protective packaging.

The panel should be protected around the edges and secured to reduce movement during transportation.

Shipping details can depend on:

• Quantity
• Destination
• Carrier
• Individual or palletized packaging
• Domestic or international delivery

Exact packaging dimensions and freight costs should be confirmed from the actual shipment.

Information Required Before Ordering

To verify the correct 2013-2018 Lexus ES350 ES300h Rear Door Glass, buyers should provide:

• Vehicle year
• ES350 or ES300h
• VIN where available
• Passenger/right side confirmation
• Main movable glass confirmation
• OEM number from the existing glass where available
• Photograph of original glass markings
• Vehicle production location where known
• Required quantity
• Delivery destination

This helps distinguish the main rear-door window from the smaller quarter glass and reduces incorrect orders.

Request a Quote

For pricing and availability of the 2013-2018 Lexus ES350 ES300h Rear Door Glass, provide the vehicle year, model, VIN, required quantity, and destination.

Confirm that the required component is the right-hand passenger-side main movable rear door glass, rather than the smaller fixed quarter window.

OEM number, tint appearance, manufacturer markings, condition, packaging, MOQ, availability, and shipping terms should be confirmed for the exact glass being supplied.
